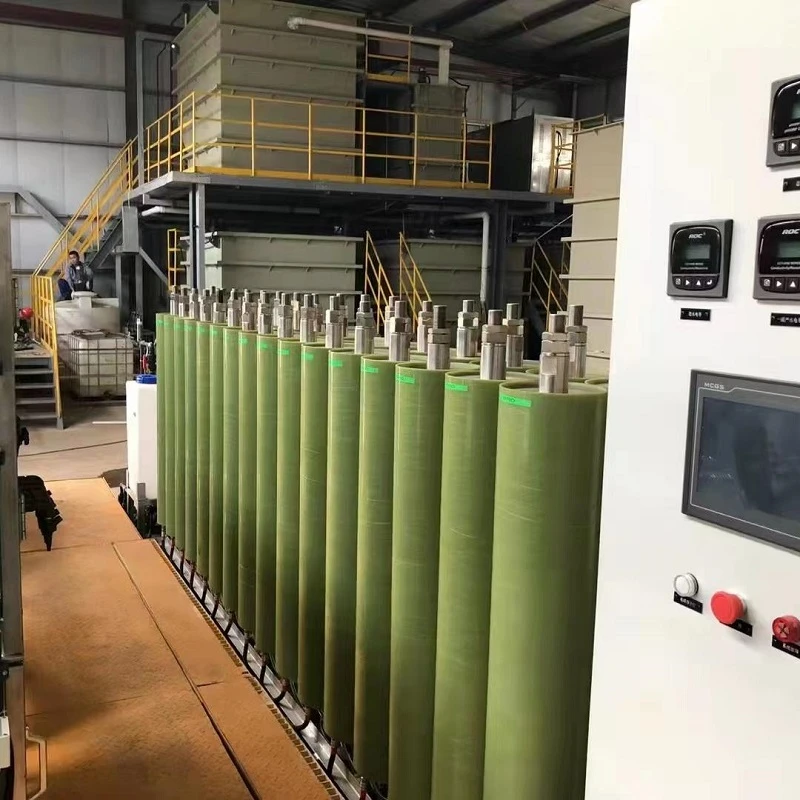

DTRO Standardized Integrated Khoom
Cov cuab yeej siv
DTRO (Disc Tube Reverse Osmosis) cov cuab yeej yog cov cuab yeej siv dej ua tau zoo tsim los ua kom muaj -concentration thiab siab- dej qab ntsev. Nws feem ntau yog siv rau kev kho cov dej khib nyiab pov tseg, rov qab osmosis concentrate ntim txo, thiab xoom- cov txheej txheem ua kua. Cov cuab yeej muaj cov qauv tsim qauv, hneev taw me me, qib siab automation, thiab yooj yim ntawm kev khiav lag luam thiab kev saib xyuas. Nws tuaj yeem hloov kho raws li tus neeg siv yuav tsum tau muab cov thawv ntim lossis skid-mounted systems.
Khoom Parameters
|
Serial No. |
Parameter |
Chav tsev |
50m³/d (permeate) |
100m³/d (permeate) |
150m³/d (permeate) |
|
1 |
Ib Cheeb Tsam Membrane |
m2 |
9.4 |
9.4 |
9.4 |
|
Differential Membrane Siab |
Bar / chav tsev |
3~7 |
3~7 |
3~7 |
|
|
2 |
Membrane Quantity |
Sib koom |
28 |
54 |
80 |
|
3 |
Tus nqi rov qab |
% |
50~75 |
50~75 |
50~75 |
|
4 |
Tag nrho cov nqi peev |
10,000 RMB |
90-105 |
150-170 |
210-230 |
|
5 |
Nruab Hwj chim |
KW |
35 |
60 |
82 |
|
6 |
Cov Nqi Ua Haujlwm (nrog rau hluav taws xob thiab tshuaj lom neeg, khoom siv thiab cov nqi khiav lag luam) Hauv Cov Lus Nug Txog Kev Siv Dej |
RMB/m³ |
11 |
9.6 |
8 |
|
7 |
Floor Space (skid mounted) |
L*W*H |
6*2.2*2.5 |
9*2.2*2.5 |
12*2.2*2.5 |
|
Floor Space (hom thawv) |
L*W*H |
6*2.4*2.8 |
9*2.4*2.8 |
12*2.4*2.8 |
Case Study
- Qhov project: Kev kho dej khib nyiab thiab dej rov siv dua ntawm lub Hoobkas hluav taws xob hauv Changsha
- Cov txheej txheem ntws: Kev kho mob lom + MBR + UF + RO + SWRO + DTRO
- Cov Txheej Txheem Txheej Txheem: 1 skid-mounted DTRO chav nrog 40 DT membrane ntsiab (90 bar)
- Kev Kho Mob Muaj Peev Xwm: 150 m³ / hnub
- Qhov System Recovery Rate: Ntau dua lossis sib npaug li 60%
- Kev khiav hauj lwm siab: 50-60 bar
Txog Peb
Nyob rau hauv Integrated Solutions
Hangzhou Nanoimp Environmental Technology Co., Ltd. tsim nyob rau hauv 2019 thiab headquartered nyob rau hauv Hangzhou, Tuam Tshoj, specializes nyob rau hauv kev tshawb fawb, manufacturing, thiab innovation ntawm advanced sib cais membranes. Lub tuam txhab tau cog lus los muab cov kev daws teeb meem sib xyaw rau kev sib cais ntawm cov khoom siv thiab cov dej khib nyiab rov qab.
Nanoimp tau tsim cov koom haum ywj pheej, nrog Foshan Branch tshwj xeeb hauv kev tsim cov khoom siv dej huv rau pej xeem thiab Haining ceg tsom mus rau kev tsim khoom PTFE MBR.
